LS-30-XXX LI3

INTENDED USE

LS-30-XXXX LI3 is a 30W constant current LED driver that operates from 176-264Vac input with 300 to 700mA output current. With it’s compact dimensions from 116 x 42.5 x 28mm it is easy to integrate in LED Panel and down light products. To ensure trouble-free operation, protection is provided against output short circuit and over Load.

CONSTRUCTION

Class II，SELV，independent. Input Voltage 220-240VAC. Protections: SCP/OLP/OVP. Power Factor 0.95C. Efficiency ≥87%, 5 years warranty.

PRODUCT OVERVIEW
Electrical and photometric data
Download Product Brochure

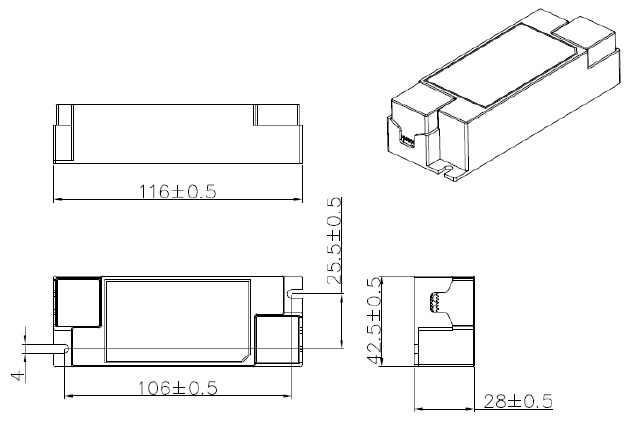

Model and Dimension

ENQUIRY ON THIS PRODUCT

Models

Model number	Input			Output
Model number	Voltage (VAC)	Max. Current (A)	Frequency (Hz)	Constant current (mA)	Normal working voltage (VDC)	No load working voltage (VDC)	Max. Power(W)
LS-30-300 LI3	220-240	0.24	50/60	300	67-100	115	30
LS-30-350 LI3	220-240	0.24	50/60	350	51.5-86	96	30.1
LS-30-400 LI3	220-240	0.24	50/60	400	45-75	85	30
LS-30-450 LI3	220-240	0.24	50/60	450	40-67	77	30.2
LS-30-500 LI3	220-240	0.24	50/60	500	36-60	70	30
