INTENDED USE

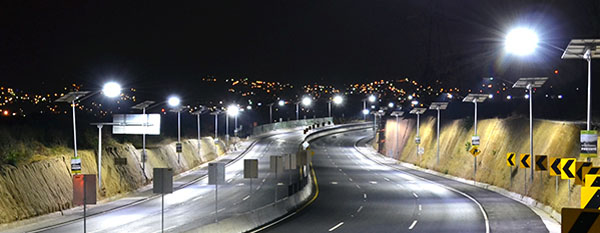

The RMS-200-2100 IP67 (0-10) L series is a 200W, constant-current IP67 LED driver that operates from 176-264Vac input with excellent power factor and THD feature. It is created for high bay, tunnel and street lights. The high efficiency of these drivers and compact metal case enable them to run cooler, significantly improving reliability and extending product life. To ensure trouble-free operation, protection is provided against input surge, output over voltage, short circuit, and over temperature.

CONSTRUCTION

Input voltage range is 176-264VAC. High efficiency up to 93%. Low THD,10%Max up to 230Vac. Full Power at Wide Output Current Range (Constant Power). 3 In 1 Dimming Function(0-10V/0-100kΩ/PWM). All-Around Protection: OVP,SCP,OTP. Waterproof(IP67) and UL Dry/Damp/Wet Location. Input Surge Protection:6kV line-line,10kV line-earth. High reliability & long lifetime and 5 years warranty.
